Currently the group companies are serving customers from Automotive, Electrical, Engineering and Pump sectors. SMP Engineers & Electricals Pvt. Ltd. is a company under Divine group. Currently our main manufacturing facility in Sinnar covers a 25000 sq. ft. area and the total campus area is about 1.5 acre. Our other manufacturing facilities in Ambad, Nasik and Hosur, Tamil Nadu together has about 15000 sq. ft. area. The Group motto is ‘Grow with Pride’ and will always work with ‘Customer First’ attitude by observing the defined core values and principles.

Divine India Production Cycle
  • The development team at SMP constantly thrives to add value to its products.
  • At SMP, we use the latest software for design and development of tooling and its parts.
  • Software such as VISI CAD, CATIA and 3-D Analysis software such as LS-Dyna.


Total Area And Activities
  • SMP ENGINEERS & ELECTRICALS PVT. LTD. SINNAR (Main plant) – Built-up area: 30,000 sq.ft.
  • SMP ENGINEERS & ELECTRICALS PVT. LTD. HOSUR - Built-up area: 20,000 sq.ft.
  • SMP ENGINEERS & ELECTRICALS PVT. LTD. SINNAR (Ready for Future expansion) – Built-up area: 20,000 sq.ft.
  • SMP ENGINEERS & ELECTRICALS PVT. LTD. SINNAR (Zinc plating facility) – Built-up area: 5,000 sq.ft.
  • DIVINESTAMP PVT. LTD. HOSUR – ALUMINUM DIE CASTING & MACHINING– Built-up area: 20,000 sq.ft.
  • DIVINE PRECISION COMPONENTS PVT. LTD. SINNAR – PLASTIC MOULDING & MACHINING Built-up area: 10,000 sq.ft.
Activities
  1. Sheet Metal stamping and fabricated assemblies.
  2. Plastic injection molded components.
  3. CNC turned and machined components.
  4. Aluminum gravity die casting and machining components.
Altair inspire form
Renishaw Primo
Design Softwares :
  1. Vero VISI CAD & CAM
  2. Altair inspire form FEA software for sheet metal forming
  3. Catia V5
SMP Sinnar Stamping Division Current Capacity
Serial Number Number of Pneumatic Press machines Tonnage Utilization
1 3 45T 60%
2 3 63T 75%
3 1 110T 80%
4 4 80T 65%
5 3 160T 70%
6 1 75T 60%
7 1 60T 60%
8 1 200T 60%
9 1 125T 60%
10 1 25T 70%
11 3 Double action Mechanical Press 0%
12 2 Double action Hydraulic Press 40%
Machines 24 75%

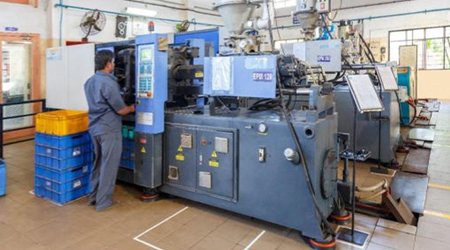

SMP Sinnar Moulding Division Current Capacity
Machine Number Number of machines Tonnage Machine Make and Model Utilization
1 1 90T Electronica Futura 55%
2 1 100T Electronica Ventura 50%
3 1 140T Electronica 45%
4 1 210T Electronica 50%
5 1 260T Electronica 40%
Total Machines 5 Total Capacity Utilization 48%
SMP Sinnar Moulding shop additional accessories
Sr. No. Accessories
1 Hopper Dryer
2 Mold temperature controller
3 Material Crusher
4 Ultrasonic welding machines
5 Insert pre-heater
Press Machine Capacity
machine_capacity
Sr. No. Machine Specs No. of MCs Customer Capacity % Utilized
1 SEW - 45Ton 2 GABRIEL / TENNECO 50%
2 SEW - 63Ton 8 GABRIEL / TENNECO / KMSI 60%
3 SEW- 80Ton 4 GABRIEL / TENNECO / KMSI 65%
4 SEW - 110Ton 2 GABRIEL / TENNECO / KMSI 45%
5 SEW - 160Ton 1 GABRIEL / TENNECO / KMSI 65%
6 HENSEL - 40Ton 2 GABRIEL / TENNECO 70%
7 HENSEL - 63 Ton 1 TENNECO 50%
Total 20 60%

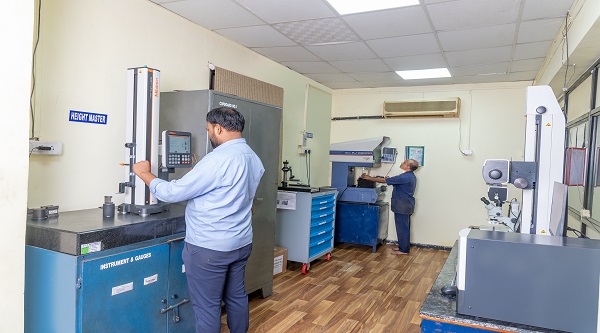

Quality measurement equipment's
Sr. No. Name Of the Machine Quantity & Make Size
1 (CMM) coordinate measuring machines 1 no. (Accurate) 1 no. (Electronica)- Old 500 x 500 x 600 , 400 x 400 x300
2 Coutour Measuring (Contracer) Mitutoyo X-axis: 100mm, Z-axis: 60mm,
3 Profile Projector Mitutoyo

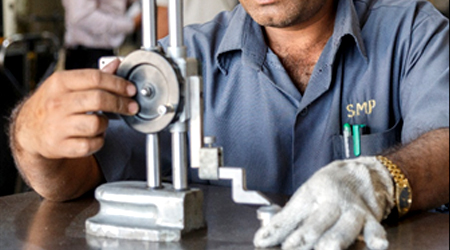

4 Linear Height Master 1 no. Mitutoyo, 1 no. (Electronica)
5 (VMM) Video measuring machine CARMAR 250 x 150 x 150
6 Surface Roughness Tester 1 no. (Mitutoyo)
7 Hardness Tester 1 no. (Ultrasonic tester) 1 no. Vicker’s tester
8 Plating thikness coat-meter 2 nos.
9 Verniers, Micrometers,Height Gauges, Dial Gauges, Bore gauges, Inside micrometers Insize,Mitutoyo, Baker
10 Torque Wrenches
11 Air Gauges Accurate
12 Universal Testing Machine 2 nos. RK Instruments
13 Weld Penetration Tester Truemet
14 Weld Checker Nash
